Brand Name : HF
Model Number : HF-L1200
Certification : CE
Place of Origin : china
MOQ : 1 set
Price : USD2000/set FOBshanghai
Payment Terms : Western Union, L/C, T/T
Supply Ability : 50 sets /month
Delivery Time : 15 days
Packaging Details : export wooden case
Input power : 0.4KW
speed : 150BPM
material : ss304
Iinput voltage : 380/220V AC
Outline size : 1200L*1000W*1200H
Weight : 180KG
Features

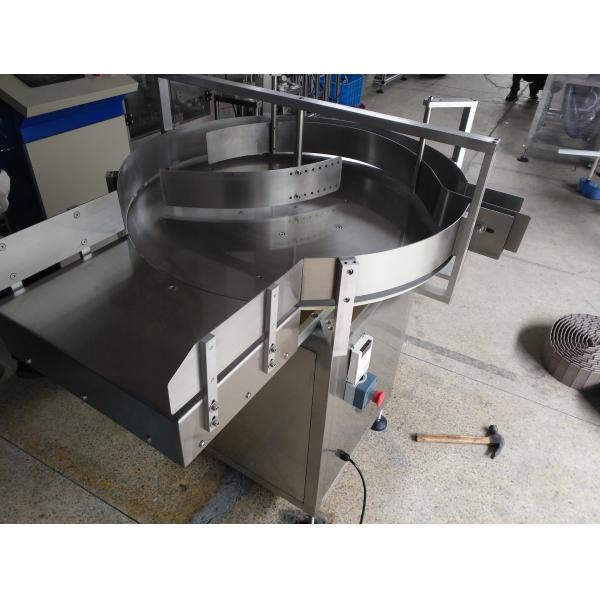

This machine is an auxiliary device in the production line. It is mainly used for storage, finishing and feeding of glass bottles to the production process.
Performance characteristics:
• Made of cast aluminum and stainless steel, the performance mechanism is stable and reliable!
• Match production line host speed!
• The main disc diameter can be confirmed at the time of ordering
parameters:
Turntable diameter: 0.8~1.2m (up to requirement)
Total power: 0.4kw
Running speed: adjustable
Steel material: ss304 steel
| Model | L-800 | L-900 | L-1000 | L-1100 |
| diameter of turning table (mm) | 800 | 900 | 1000 | 1100 |
| capacity (cans/min) | 20-40 | 30-60 | 40-80 | 60-120 |
| overall dimension (mm) | 1200*800*1094 | 1150*900*1094 | 1230*1000*1160 | 1350*1140*1160 |



contact information :
kunshan Howfond Machinery Co.,Ltd.
|
|
Automatic Bottle Unscrambler for storage, finishing and feeding of glass bottles to the production process Images |
