Automatic High-Speed Ice Cream Cup Shrink Sleeve Labeling Machine
This is a fully automatic high-speed shrink sleeve labeling machine specially designed for ice cream cups and similar plastic cup packaging. It realizes automatic cup feeding, precise sleeve cutting, accurate labeling and tunnel shrinking in one continuous process, requiring minimal manual operation.
Equipped with high-performance servo control system, the machine delivers stable running speed, high labeling accuracy and zero offset. It perfectly fits round, square and special-shaped ice cream cups, supporting PVC, PET and OPS shrink labels for full 360° body wrapping and tamper-proof sealing.
The whole machine adopts food-grade stainless steel structure, anti-corrosion and easy to clean, fully meeting food industry sanitary standards. With outstanding high-speed production capacity, it greatly improves production efficiency, reduces labor cost and ensures neat, smooth and consistent labeling appearance for mass ice cream production lines.
The most professional and advanced empty cup shrink sleeve labeling machine ever manufactured in CHINA. Automatic cup feeder, shrink sleeve applicator,recirculating air heat shrink tunnels and cup stack collector. The top speed 200 cups per minute with perfect heat shrink distribution.
parameters for automatic cup sleeve applicator :
| Machine model |
HF-250M |
| Capacity |
250bpm (sleeve height 8~10cm) |
| Size L*W*H |
2000*850*2000mm |
| weight |
650Kgs |
| Powder supply |
AC 220V Singe phase or 220V 3phases |
| Eligibility percent |
≥99.5% |
| Total powder |
2.5KW |
|
|
| Materials |
PVC,PET,OPS |
| Thickness |
0.035~0.05mm (3.5~5 micro meter) |
| Labels height |
40~300mm |
| Flat width |
Max210mm |
| Core Dia. Of Labels roll |
76mm or 127mm |
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
welcome to our factory to check the empty sleeve labeling machine .
|
|

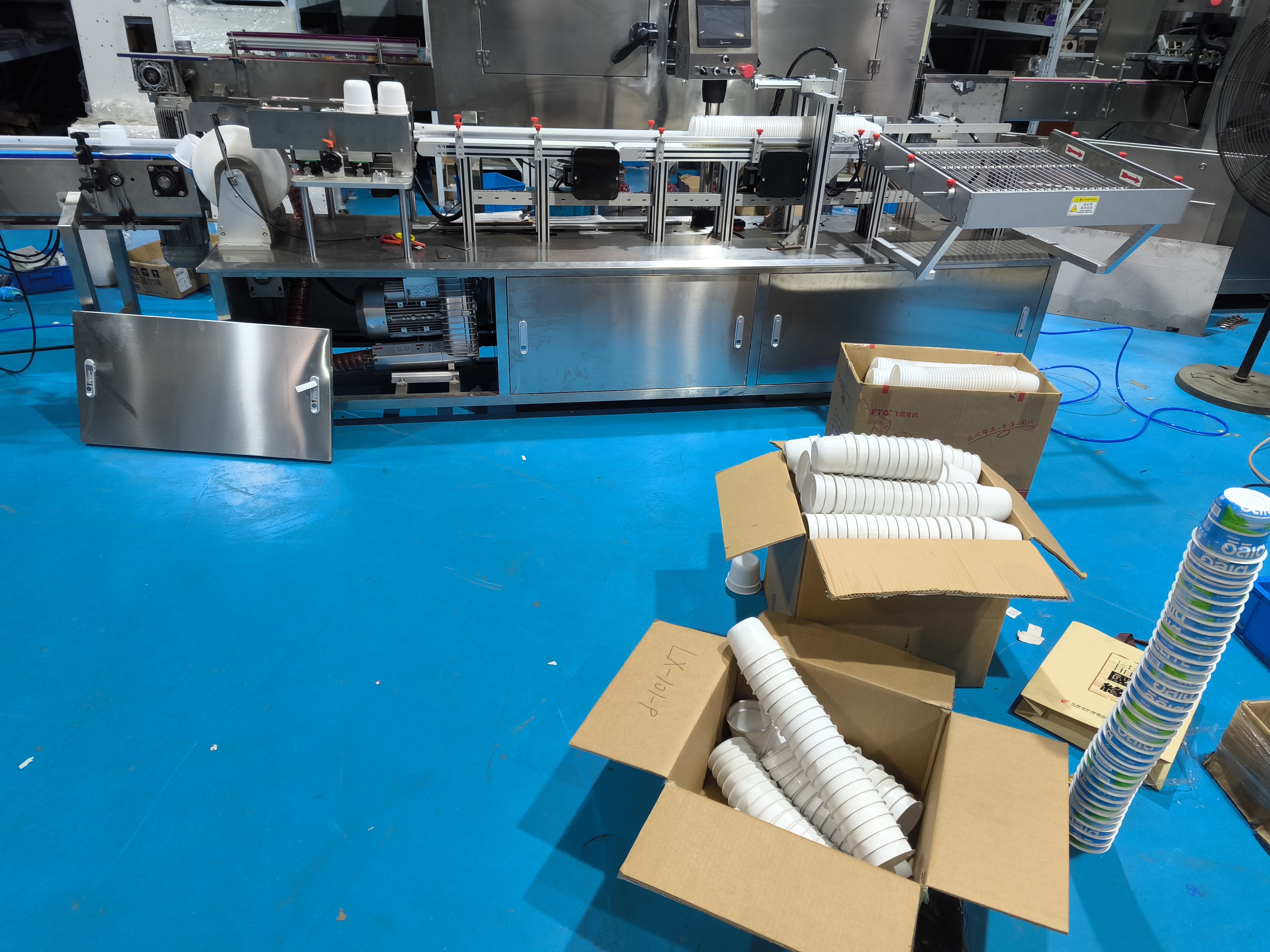

AUTOMATIC ICE CREAM CUP SHRINK SLEEVE LABELING MACHINE with HIGH SPEED Images
|
